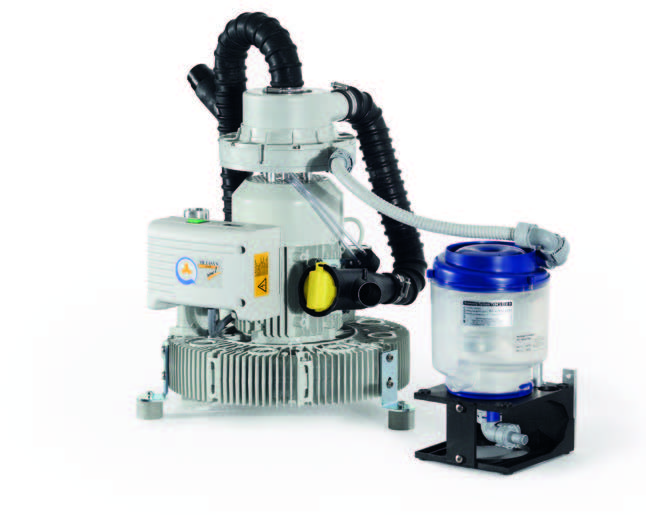

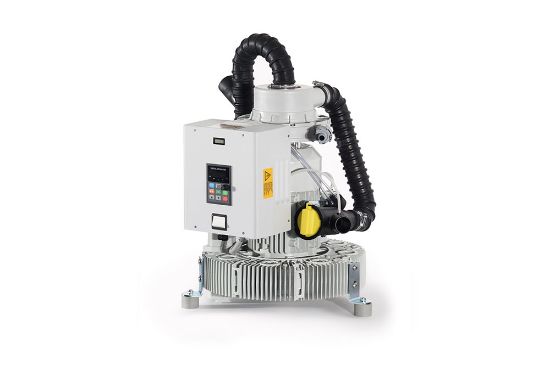

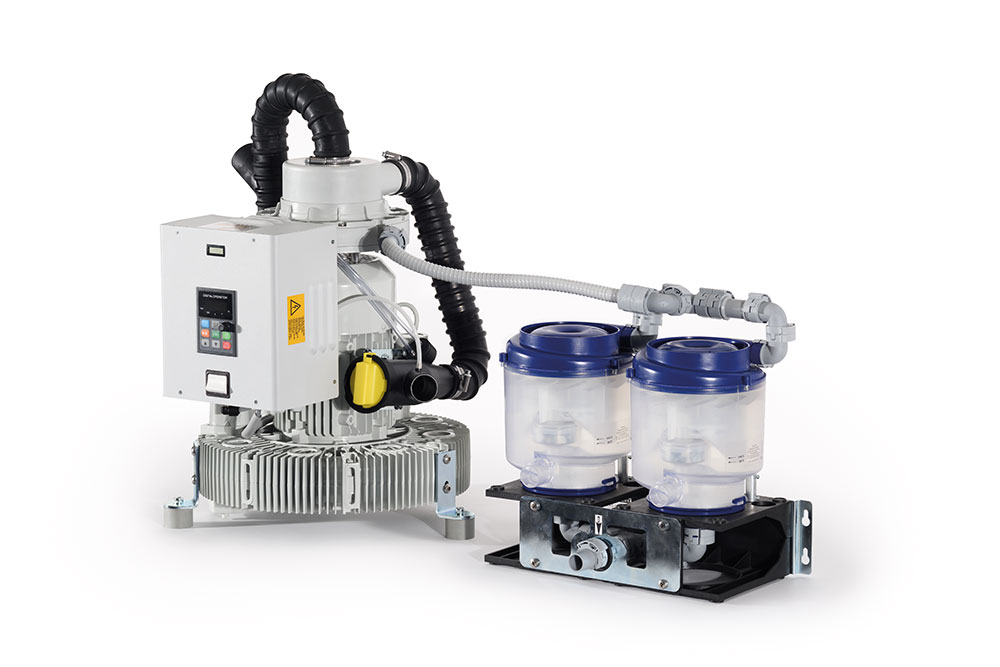

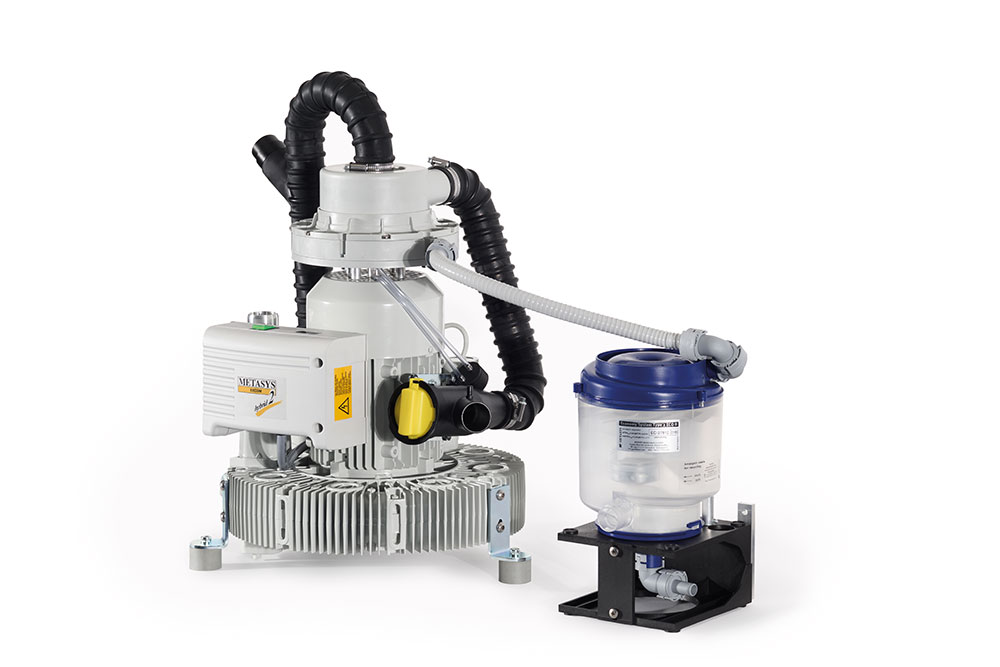

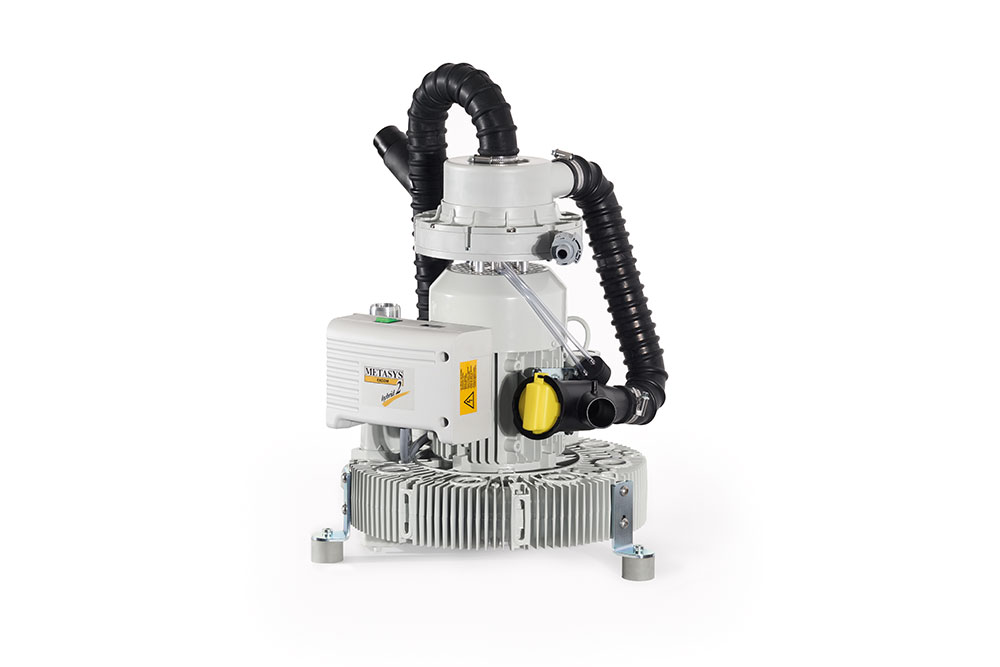

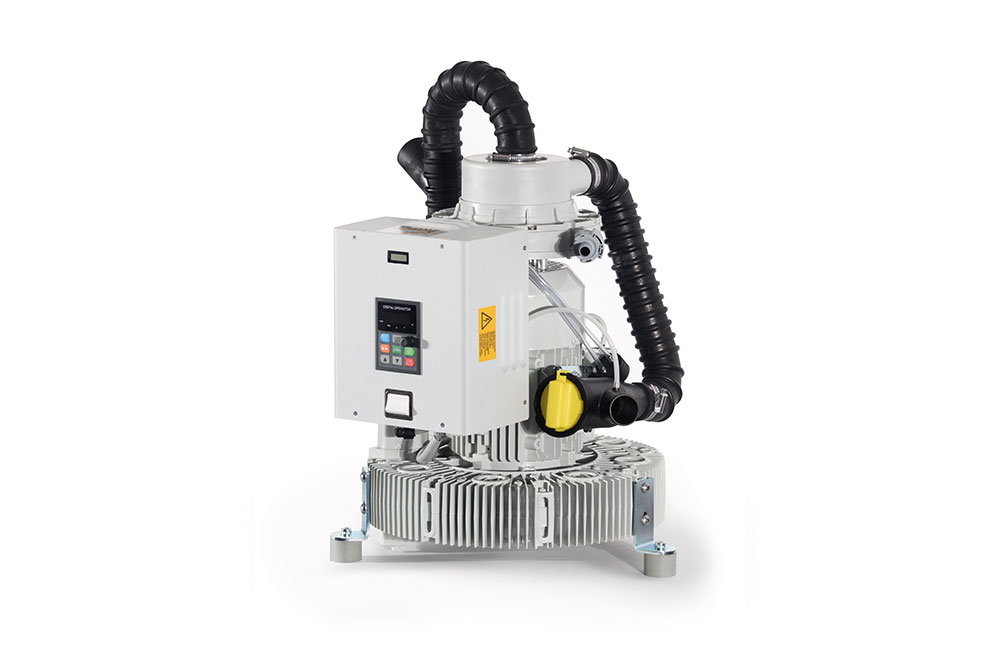

Metasys Excom Hybrid 5

Features:

• Centrifugal separation rotor
• Frequency-controlled suction power regulation
• Aluminium turbine wheel
• High wastewater outlet
• Single motor shaft
• Airflow-optimized cooling fins
• Low operating costs

Advantages:

The EXCOM Hybrid central suction system offers flexible, user-friendly, and efficient technology. It combines dry suction with optional air/water separation and amalgam separator modules. Unique in its design, it can be used as both a dry and semi-wet suction system.

Technical Specifications:

• Airflow rate: 2000/2400 l/min
• Negative pressure: 180 mbar
• ambient temperature: 40°C
• Noise level: 64/68 dB(A)
• Noise level with cover: 51/54 dB(A)
• Dimensions (H x W x D): 620 x 460 x 455 mm
• Dimensions with cover (H x W x D): 785 x 500 x 550 mm
• Weight: 30 kg
• Weight with cover: 67 kg
